Acoustic Guitar Form - OM (Orchestra Model) size without Cutaway for Luthiers and Guitar Builders
An MDF guitar form (also called a mould or mold) for Luthiers and acoustic guitar makers for shaping guitar sides after steam bending and/or holding the sides while completing the work.
This is an 'OM' size with no cutaway shape.
With 5 layers of 12mm MDF, this is a perfect depth of 60mm and allows enough room for attaching bindings.

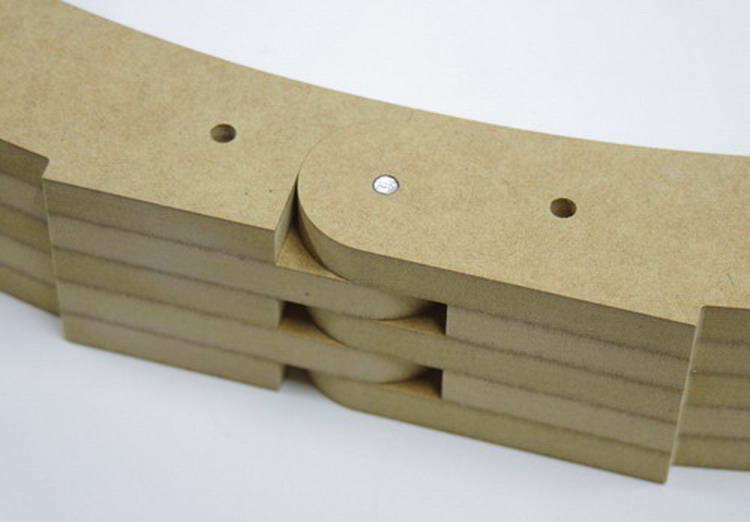

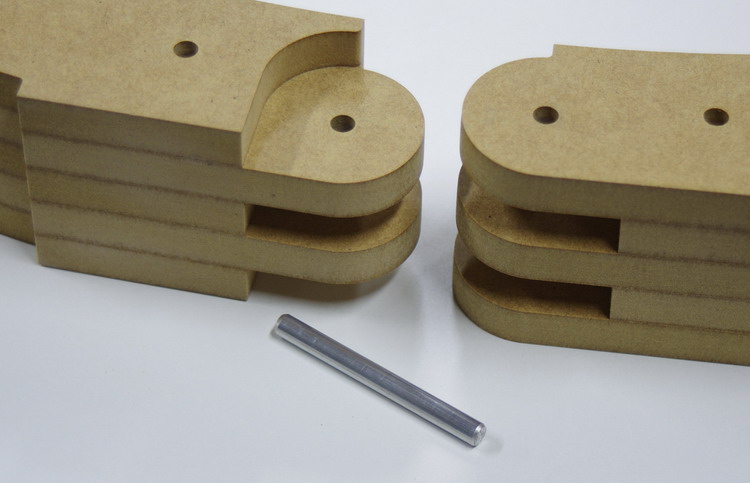

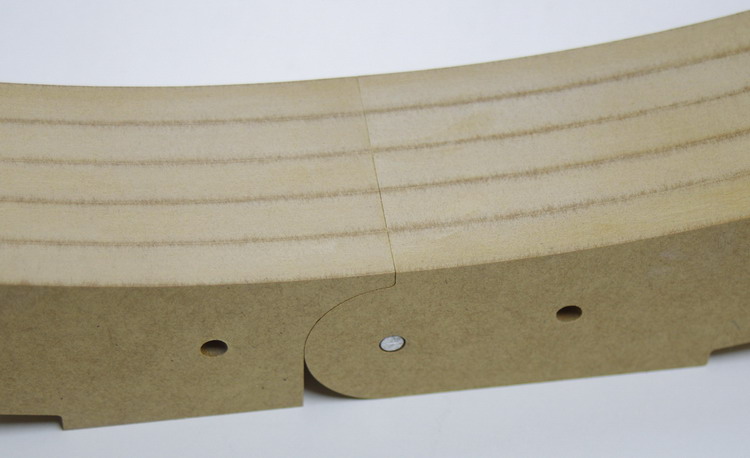

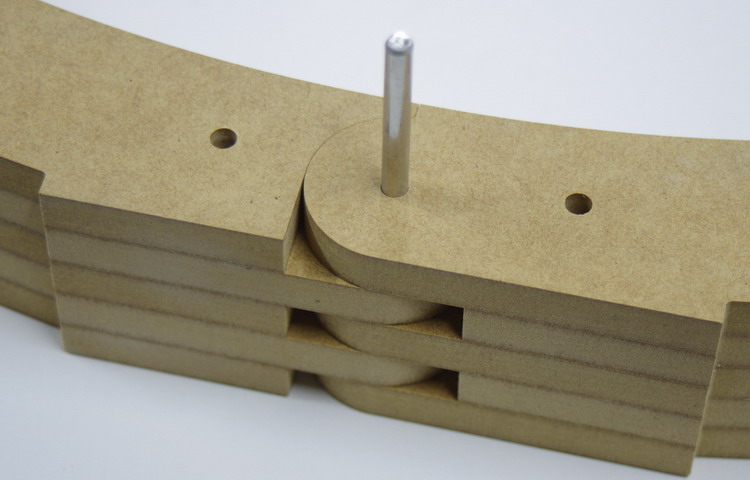

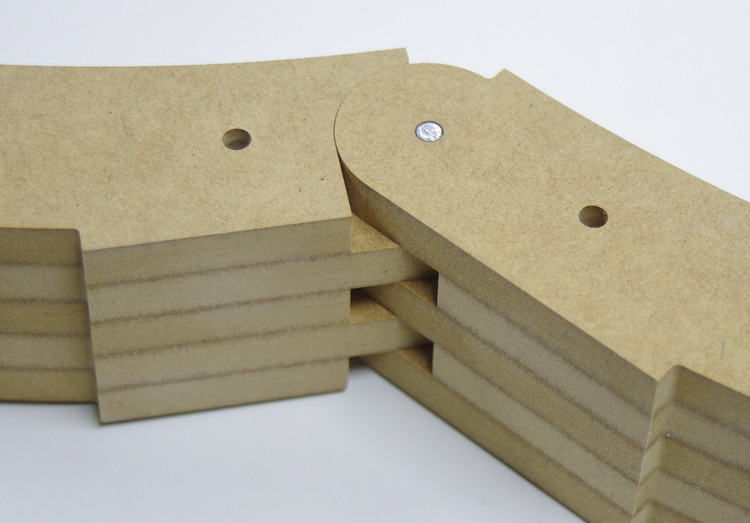

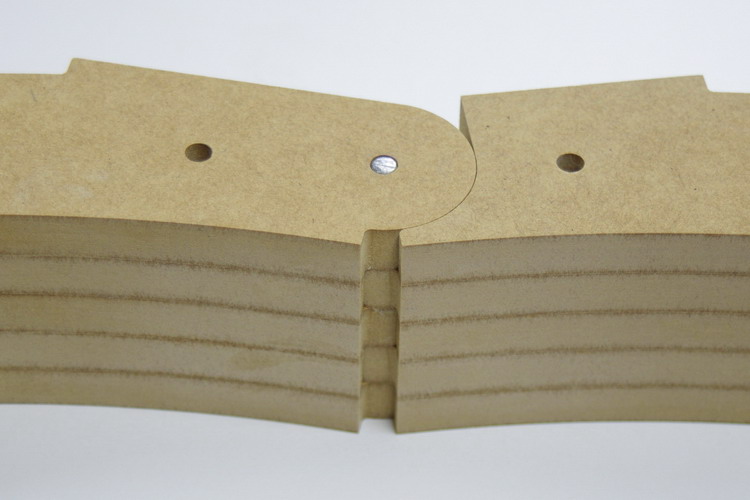

A custom designed hinge system holds the two halves together with a 6mm aluminium pin and locks the form tight as a single piece. Easily knock a pin out with a pin punch (or a 5mm bar or screw driver) to separate the halves to remove the moulded sides.
Cut to size with a CNC and laminated with Titebond glue, the inner and outer forms have a 3mm gap to allow space for the bent sides to fit perfectly. Flats machined onto each end allows the form to be stood upright on a bench and flats machined on the inner form allow positions to easily place clamps.
Shown as a right hand model, but turned upside down, a lefty can be made.
A complete system, this comes with the outer forms, the inner forms and 2 pins for locking the halves together.
The details -
- Upper bout width - 287.5mm ( 11 & 5/16" )
- Lower bout width - 381mm ( 15" )
- Waist - 237mm ( 9 & 21/64" )
- Body length - 492mm ( 19 & 3/8" )
- Form size - 471mm X 600mm X 60mm (Width X Length X Height)
Please note that this is a raw MDF product and it is suggested to apply a coat of polyurethane prior to use. Read measurements carefully and determine if this form is right for you...
